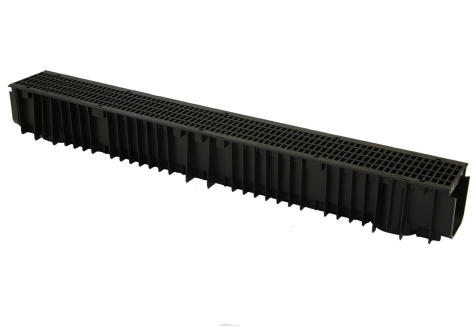

Channel Drain x 1m Mesh Grate CD 422/96

Model:  DSDC107

Clark Drain x 1m Mesh Grate CD422/96

Applications:Landscaping, Garage Threshold

Accreditations: BS EN1433:2002 Type M, CE Marked

Locking: Snap Fit

Loading: A15

Grating: Mesh

Material: Polypropylene

Internal Dimensions: 1000 (L) x 90 (W) x 105 (D)

External Dimensions:; 1000 (L) x 128 (W) x 117 (D)

Water Way Area:534cm2

Includes knockout on base for 110mm pipework connection

Comaptible Fittings :

• DC107Q- Quad Box HDPE Grate CD 406
• DSDC206- Drainage Channel Outlet Cap/End Cap (pair)
• DSDC210- Debris/Leaf Trap

A15 Refers to the maximum weight load that the channel can withstand. This channel is commonly used in pedestrian areas. For example in gardens or pedestrian footfall areas where there is limited vehicle contact. This channel can hold up to 1.5 tonnes.
