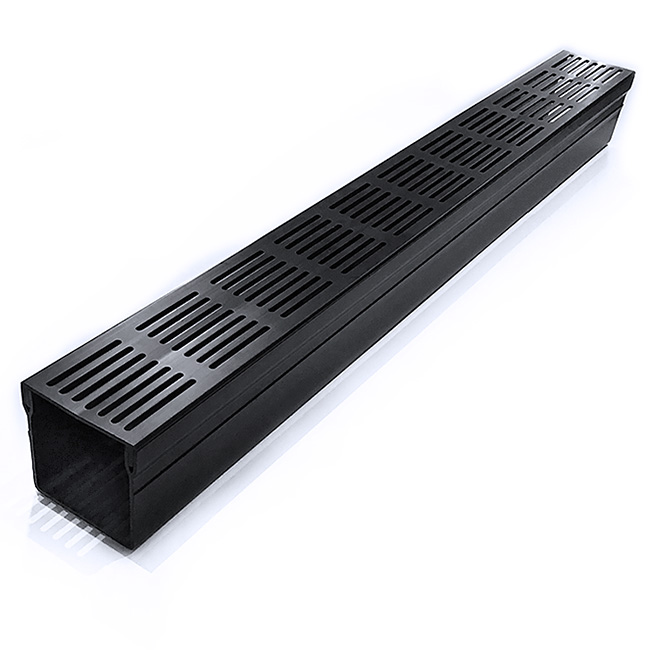

Threshold 100 Channel Drainage x 1m Black Aluminium Grate

Model:  TD601

Threshold 100 Channel Drainage x 1m Black Aluminium Grate

Dimensions:

• External Width (Top)- 100mm
• Internal Width (Top)- 85mm
• External Width (Bottom)- 100mm
• Internal Width (Bottom)- 95mm
• Internal Depth- 95mm
• External Depth- 100mm
• Length-1000mm

Advantages and Features:

• Grate is removable for cleaning
• Aluminium grates should not show signs of rusting (THIS EXCLUDES OUR CORTEN STEEL RANGE)
• A15 rated- Popular for use on a patio or top end of driveway (providing a car will not drive over it).
• This channel is easy to put together with the use of connectors to help keep the unit stable during installation. We recommend you purchase 1 connector per length of channel and use a connector on each of the three ends of a tee and both ends of the 90deg corner unit.

Compatible products:

• TD602- Channel Coupling
• TD603-Bottom outlet to 110mm
• TD604- Channel End Cap
• TD605- Inline Outlet to 80mm
• TD607- Threshold Corner Unit Black Aluminium Grate
• TD609- Threshold Drain Tee Black Aluminium Grate

A15 Refers to the maximum weight load that the channel can withstand. This channel is commonly used in pedestrian areas. For example in gardens or pedestrian footfall areas where there is limited vehicle contact. This channel can hold up to 1.5 tonnes

*Please note: These are not ACO and are not compatible with ACO products*
